جزئیات محصول:
پرداخت:
|
| مورد: | سلول بار فولاد ضد زنگ | ظرفیت: | 500 کیلوگرم تا 5ton ، 250lb به 20KLB |
|---|---|---|---|
| درجه IP: | ضد آب IP68 | خروجی: | سنسور آنالوگ |
| طریقه استفاده: | سنسور فشار | تئوری: | حسگر مقاومت |
| برجسته: | Beam Type Load Cell,High Accuracy Load Cell,High Accuracy Load Cell |
||
Specifications:
| Capacity | t | 0.1/0.15/0.2/0.25/0.3/0.4/0.5/0.75/1/1.5/2/3/5/7.5/10 | ||||||
| lb | 250/500/750/1K/1.5K/2K/2.5K/2.5KLE/3K/4K/5K/5KSE/7.5K/10K/15K/20K | |||||||
| Accuracy | C2 | C3 | A5M | B10M | ||||
| Approval | OIML R60 C3 | |||||||
| Maximum number of verification intervals |
n max | 2000 | 3000 | 5000 | 10000 | |||
| Minimum load cell verification interval |
Vmin | Emax/5000 | Emax/10000 | Emax/15000 | Emax/10000 | |||
| Combined error | (%FS) | ≤± 0.030 | ≤± 0.020 | ≤± 0.026 | ≤± 0.050 | |||
| Creep | (%FS/30min) | ≤± 0.024 | ≤± 0.016 | ≤± 0.017 | ≤± 0.040 | |||
| Temperature effect on sensitivity |
(%FS/10℃) | ≤± 0.017 | ≤± 0.011 | ≤± 0.013 | ≤± 0.040 | |||
| Temperature effect on zero |
(%FS/10℃) | ≤± 0.023 | ≤± 0.015 | ≤± 0.014 | ≤± 0.020 | |||
| Output sensitivity | (mv/v) | 3.0±0.008 | ||||||
| Input resistance | () | 350±3.5 | ||||||
| Output resistance | () | 350±3.5 | ||||||
| Insulation resistance | () | ≥ 5000(50VDC) | ||||||
| Zero balance | (%FS) | 1.0 | ||||||
| Temperature, compensated |
(℃) | -10~+40 | ||||||
| Temperature,allowed | (℃) | -35~+65 | ||||||
| Excitation, Recommended |
(V) | 5~12(DC) | ||||||
| Excitation,Max | (V) | 18(DC) | ||||||
| Safe overload | (%FS) | 150 | ||||||
| Ultimate overload | (%FS) | 300 | ||||||
Description:

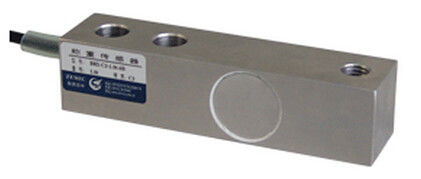

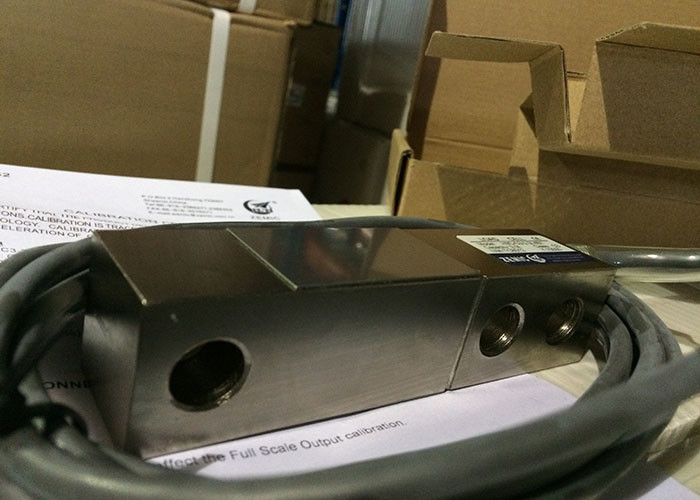

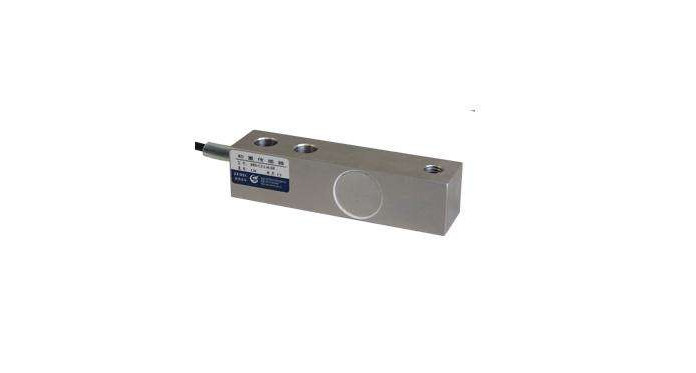

Zemic Load Cell B8D 0.5t to 10t OIML Approval
1. B8D load cells are available in the capacities 250lb to 20Klb and 0.5t to 5t.
2. Stainless steel construction, potted by adhesive inside.oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.
3. Single shear beam, easy for installation, suitable for electronic truck scales, automobile testing facilities, hopper scales and other electronic weighing devices.
4. Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.
Important Features
1. Capacities: 250lb to 20Klb and 0.5t to 5t.
2. High accuracy.
3. Stainless steel construction.
4. Low profile.
5. With OIML approval.
Applications:
It is widely used in platform scale, truck scale and other electronice weighing devices.
Competitive Advantage:
1. High Quality:
We have strict quality control system, all of our products comply with international quality standards and are greatly in a variety of different markets throughout the world.
2. Outstanding Customer Service
We are a professional manufacturer and exporter committed to weighing equipments research and manufacture. We have good English speakers , will give every clients timely response.
3. Low MOQ & Fast Delivery:
Small order quantity and flexible payment terms, it can meet your promotional business very well.
Fast delivery, it can meet your urgent needs.
