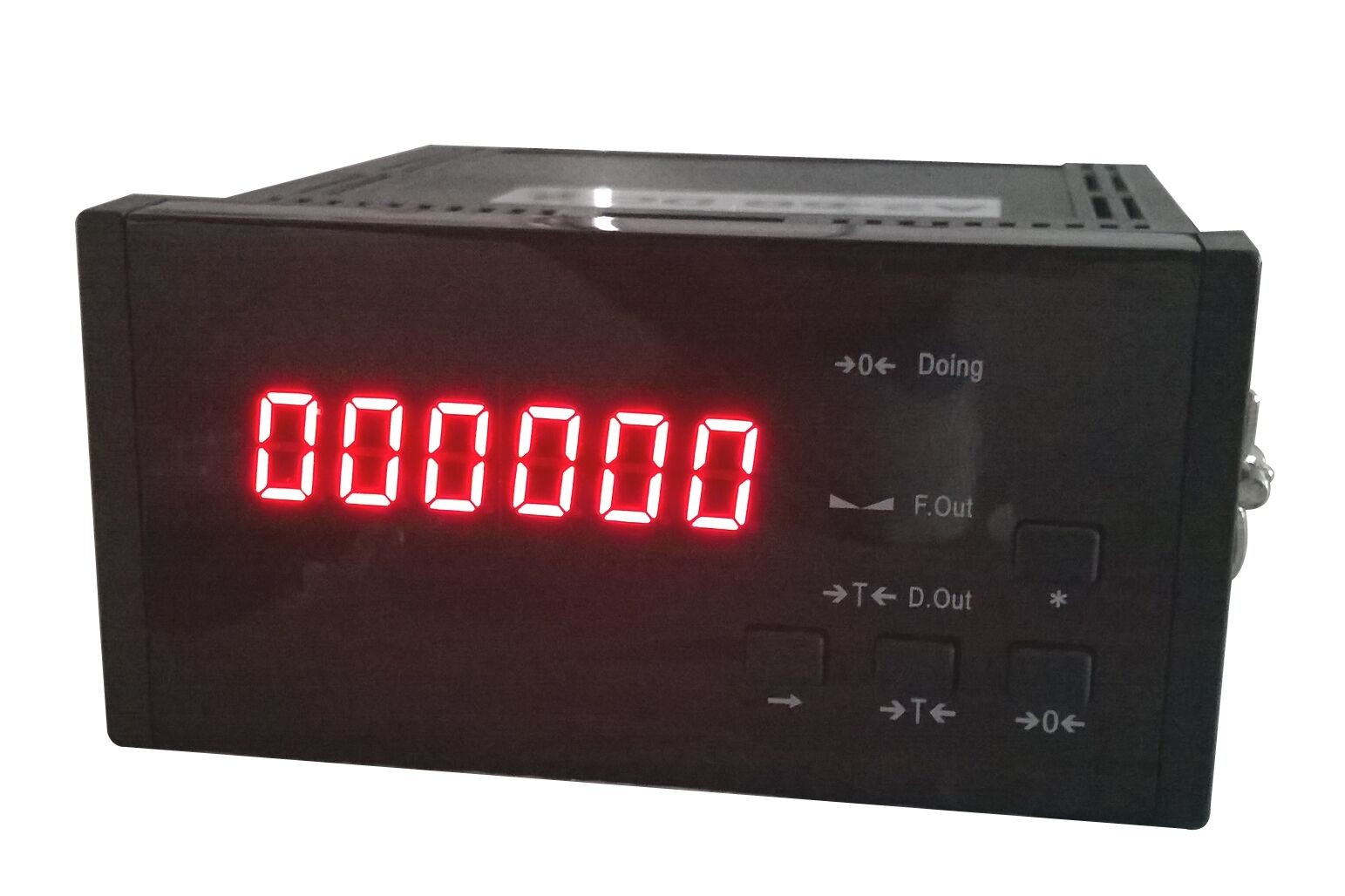

شاخص مقیاس دیجیتال با دقت بالا با نمایشگر LED

High Precision Digital Scale Indicator With LED Display
High Precision Digital Scale Indicator With LED Display High Precision Digital Scale Indicator With LED Display High Precision Digital Scale Indicator With LED Display

تصویر بزرگ :  شاخص مقیاس دیجیتال با دقت بالا با نمایشگر LED

جزئیات محصول:
محل منبع: China
نام تجاری: CAISUN
شماره مدل: XK315A2-6
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: negotiation
جزئیات بسته بندی: carton
زمان تحویل: 7~10days
قابلیت ارائه: 500pcs/M
توضیحات محصول جزئیات
نوع مبدل A/D: سیگما دلتا نوع نمایش: رهبری
خروجی سیگنال: خروجی آنالوگ 4-20 میلی آمپر کیفیت نمایش: 3000
منبع تغذیه: آداپتور DC 9V 1A یا AC 110-220V 50Hz تحریک سلول بار: DC 5V
برجسته:

شاخص کنترل دقیق

,

کنترل وزن توزین مقیاس دیجیتال

High Precision control indicator A2-6 Series Weighing Controller (4~20MA)

Specification



A/D Converter type Sigma-Delta
Sample rate 10 times / second (50 times / second optional)
Display resolution 3000
Internal resolution 1,000,000
Load cell excitation DC 5V
Load cell Up to 4 x 350 Ω or 8 x 700 Ω load cell
Display 6-digit 0.4 inch LED
Division

1/2/5/0.1/0.2/0.5/0.01/0.02/0.05/0.001/0.002/0.005/10/

20/50/100/200/500/0.10/0.20/0.50/0.010/0.020/0.050

Power DC 9V 1A adapter or AC 110-220V 50 Hz
Operating temperature 0℃~40℃
Storage temperature -25℃~55℃
Relative humidity 85% RH
Size 95 × 48 × 110 mm
Weight 0.5 kg
Signal output 4-20 mA analog output
Options

a) Opto-isolated RS232 or RS485

b) 6 relay outputs with 2 opto-isolated inputs that can be used to control the output of relay #1 and #2



1. Model Number

شاخص مقیاس دیجیتال با دقت بالا با نمایشگر LED 0شاخص مقیاس دیجیتال با دقت بالا با نمایشگر LED 1شاخص مقیاس دیجیتال با دقت بالا با نمایشگر LED 2شاخص مقیاس دیجیتال با دقت بالا با نمایشگر LED 3XK315A2-6□-□□-□

شاخص مقیاس دیجیتال با دقت بالا با نمایشگر LED 40 - No interface

شاخص مقیاس دیجیتال با دقت بالا با نمایشگر LED 51 - Optical -isolated RS232C

2 - Optical -isolated RS485

شاخص مقیاس دیجیتال با دقت بالا با نمایشگر LED 6شاخص مقیاس دیجیتال با دقت بالا با نمایشگر LED 7AC - AC 110-220V 50 Hz available for XK315A2-6A series only

DC - DC 9V 1A adapter

شاخص مقیاس دیجیتال با دقت بالا با نمایشگر LED 8A - Basic model with 4-20 mA analog output

شاخص مقیاس دیجیتال با دقت بالا با نمایشگر LED 9B - Basic model plus 6 relay outputs and 2 opto-isolated inputs

2. Key Functions

* 】 Function Select key or Enter key

【→】 Right key

【→T←】 Tare key or Increment key

【→0←】 Zero key or Decrement key

3. Status

〖→T←〗 On when tare and the weight is net weight

〖→0←〗 On when the weight is zero

〖◣◢〗 On when the weight is stable

4. Error Code

〖 OUEr〗 - when the weight is > 100% FS + 9d

〖-OUEr〗 - when the weight is < - 20d

〖HHHHHH〗 - when zero reference is > +2% FS

〖LLLLLL〗 - when zero reference is < -2% FS

5. Interface Operation

Serial format 8-N-1: 8 data bits, No parity bit, 1 stop bit.

1. Adr=00 - continuous ASCII reverse data output, if weight is -123.45, the output is 54.321-

2. Adr=99 - continuous ASCII regular data output, if weight is -123.45, the output is -123.45

3. Adr=01-98 - data output using ModBus protocol

6. Operation

1. Turn on the indicator, it displays the version number and checks the LED from “0” to “9”

2. Zero

· When the weight is stable between ±2% FS,press【→0←】zero the display and〖→0←〗is on

· When the zero reference is > +2% FS, it displays 〖HHHHHH〗

· When the zero reference is < -2% FS, it displays 〖LLLLLL〗

3. Tare

· When the weight is stable,〖→T←〗is on

· When the weight is greater than zero and stable,〖◣◢〗 is on

· Press【→T←】zero display and〖→T←〗is on

4. Clear Tare

· When the weight is stable and the weight is net weight,〖→T←〗is on

· Press【→T←】clears the tare and〖→T←〗is off

7. Configurations

Operation Display Descriptions
Press【→】 〖000000〗 Go to Calibrations and Configurations menu and enter password 002003

Press【→】

Or【→T←】

〖002003〗

To enter password 002003:

· Press【→】to move blinking digit to the right

· Press【→T←】to increment blinking digit

· Press【→0←】to decrement blinking digit

Press【 * 〖CAL SP〗 In Calibrations menu
Press【 * 〖-SEt-〗 In Configurations menu
Press【→】 〖d 0.01〗 Set division
Press【→T←】 〖d 0.05〗 Press【→T←】or【→0←】to select d
Press【 * 〖 100.00〗 Set FS
Press【→】 〖000000〗 Left most digit is blinking

Press【→】

Or【→T←】

〖0300.00〗 Press a combinations of【→】,【→T←】and【→0←】to select FS
Press【 * 〖FLt 2〗

Set filter. FLt=0-2

The bigger filter will result in slower weight result

Press【→T←】 〖FLt 1〗 Press【→T←】or【→0←】to select filter
Press【 * 〖AUtP00〗

Set zero trace range and zero at start range

AUtP=00 no zero set at start,zero trace range is 0.4d;

AUtP=10 zero at start range 20% FS,zero trace range is 0.4d;

AUtP=20 zero at start range 20% FS,zero trace range is 0.8d;

AUtP=30 zero at start range 20% FS,zero trace range is 1.2d;

AUtP=40 zero at start range 20% FS,zero trace range is 1.6d;

AUtP=50 zero at start range 20% FS,zero trace range is 2.0d;

AUtP=60 zero at start range 20% FS,zero trace range is 2.4d;

AUtP=70 zero at start range 20% FS,zero trace range is 2.8d;

AUtP=80 zero at start range 20% FS,zero trace range is 3.2d;

AUtP=90 zero at start range 20% FS,zero trace is 3.6d;

Press【→】

Or【→T←】

〖AUtP10〗 Press a combinations of【→】,【→T←】and【→0←】to select AUtP
Press【 * 〖Adr 00〗

Enter indicator address

Adr=00 continuous reverse data output

Adr=99 continuous regular data output

Adr=01-98 data output using ModBus protocol

Press【→】

Or【→T←】

〖Adr 12〗 Press a combinations of【→】,【→T←】and【→0←】to select Adr
Press【 * 〖b 2400〗

Set Baud rate

b=1200,2400,4800,9600

Press【→T←】 〖b 9600〗 Press【→T←】or【→0←】to select baud rate
Press【 * 〖L00791〗

Calibrate the 4 mA analog output

L means current output is 4 mA

Press【→】

Or【→T←】

〖L00791〗 Press a combinations of【→】,【→T←】and【→0←】to calibrate the 4 mA analog output
Press【 * 〖H03723〗

Calibrate the 20 mA analog output

H means current output is 20 mA

Press【→】

Or【→T←】

〖H03723〗 Press a combinations of【→】,【→T←】and【→0←】to calibrate the 20 mA analog output
Press【 * 〖 0.00〗 Save all parameters



Applications:



Electronic platform scale, weighing scale, etc.



Advantage:



1. High Quality:
We have strict quality control system, all of our products comply with international quality standards and are greatly in a variety of different markets throughtout the world.

2. Outstanding Customer Service
We are a professional manufacturer and exporter committed to weighing equipments research and manufacture.

3. Low MOQ & Fast Delivery:
Small order quantity and flexible payment terms, it can meet your promotional business very well.
Fast delivery, it can meet your urgent needs.
